| Applicable Regulations |
The booth should be suitable for the regulations enforced at the installation site. In the United States, requirements commonly include OSHA rules for spray-finishing operations, including 29 CFR 1910.107, applicable electrical requirements, and locally adopted fire and building codes.
|
Confirm the intended use, paint materials, booth location, and authority having jurisdiction before purchase. A booth that was acceptable at its original site may not meet the requirements of a new site.
|
Current permits, inspection records, original engineering drawings, and written confirmation from the local authority having jurisdiction where available.
|
| Spray-Finishing Standard |
The design should address the hazards of flammable or combustible coatings, overspray, ignition sources, ventilation, housekeeping, and fire protection. NFPA 33 is widely used in the United States as a reference standard for spray application using flammable or combustible materials.
|
Check whether the booth configuration, spray area, exhaust arrangement, and fire-protection provisions are consistent with the materials and application process.
|
Booth design specifications, fire-protection documentation, coating safety data sheets, and records of prior code inspections.
|
| Ventilation and Airflow |
The exhaust system should provide adequate airflow to control vapors, fumes, and overspray. Exhaust discharge should be arranged so contaminants are not recirculated into occupied areas or drawn into building air intakes.
|
Inspect the exhaust fan, motor, belts, ductwork, filters, plenums, dampers, and discharge point. Measure airflow and compare the result with the booth's design requirements and applicable local rules.
|
Airflow test results, fan performance data, duct inspection records, and preventive-maintenance logs.
|
| Make-Up Air |
Where required by the booth design or local code, make-up air should be sufficient to replace exhausted air without creating excessive negative pressure, unstable airflow, or interference with combustion equipment.
|
Check supply fans, heaters, filters, dampers, controls, temperature limits, and the balance between supply and exhaust airflow.
|
Commissioning report, air-balance report, heater specifications, and control-system test records.
|
| Electrical Classification |
Electrical equipment located in or near the spray area should be suitable for the classified hazardous location identified by the applicable electrical code. The exact classification depends on the booth design, coating materials, ventilation, and local requirements.
|
Review light fixtures, switches, motors, wiring, junction boxes, controls, and penetrations. Look for damaged seals, exposed conductors, non-listed components, or equipment installed in an unsuitable location.
|
Electrical one-line diagrams, equipment listings or certifications, hazardous-location assessment, and inspection records completed by a qualified electrician.
|
| Interlocks and Controls |
The booth should prevent or limit spraying when required ventilation, exhaust, or other critical safety conditions are not present. Interlocks should be reliable, accessible for testing, and not easily bypassed.
|
Test fan-start sequencing, spray-equipment enable signals, pressure or airflow switches, emergency stops, alarms, and heater shutdown functions.
|
Functional test results, control schematics, alarm records, and documented interlock-testing procedures.
|
| Fire Protection |
The installation should have the fire-protection equipment required by the applicable code and risk assessment. Depending on the design and jurisdiction, this may include automatic suppression, portable extinguishers, detection, and accessible emergency controls.
|
Inspect suppression nozzles, piping, valves, detectors, extinguishers, access clearances, and manual release stations. Confirm that equipment has not been painted over, obstructed, or disconnected.
|
Fire-system inspection tags, service certificates, hydraulic or acceptance-test records, and local fire-authority approval.
|
| Filters and Overspray Collection |
Filters and overspray-collection components should be compatible with the coating process and installed so that overspray does not accumulate on fans, ducts, heaters, or other ignition-prone surfaces.
|
Check filter type, fit, loading, replacement availability, rack condition, pressure-drop indicators, and the cleanliness of downstream components.
|
Filter specifications, replacement schedule, pressure-drop readings, cleaning records, and photographs of internal surfaces.
|
| Grounding and Static Control |
The booth, spray equipment, workpieces, containers, and conductive components should be properly bonded and grounded where required to reduce static-spark risks.
|
Check grounding conductors, bonding jumpers, clamps, continuity, and connection points. Test continuity using suitable calibrated equipment.
|
Grounding and bonding test results, electrical inspection reports, and maintenance records.
|
| Booth Construction and Condition |
Walls, ceilings, floors, doors, windows, seals, and access panels should be durable, cleanable, and maintained without openings or surfaces that allow hazardous overspray accumulation.
|
Look for corrosion, dents, damaged panels, failed seals, combustible deposits, unapproved modifications, and gaps around doors or service penetrations.
|
Structural inspection report, repair history, modification records, and current photographs.
|
| Lighting |
Lighting should provide adequate visibility and be appropriately protected or rated for its location. Light panels and seals should prevent overspray from entering electrical spaces.
|
Inspect lenses, gaskets, frames, wiring, switches, and the separation between lamps and the spray area. Verify that lighting remains functional during normal operation.
|
Lighting specifications, electrical inspection results, replacement history, and illumination measurements where required.
|
| Compressed Air and Spray Equipment |
Compressed-air systems, spray guns, hoses, regulators, and fluid-delivery equipment should be suitable for the coating process and maintained to prevent leaks, pressure failures, or uncontrolled discharge.
|
Check hose condition, fittings, regulators, pressure-relief devices, spray-gun grounding, fluid lines, and shutoff controls. Verify compatibility with the coating materials.
|
Pressure-test records, equipment manuals, hose inspection logs, and coating-equipment maintenance records.
|
| Flammable-Liquid Storage and Handling |
Paints, thinners, solvents, waste, and contaminated materials should be stored and handled in approved containers and designated areas, away from ignition sources and unnecessary accumulation.
|
Review storage cabinets, waste containers, transfer procedures, spill controls, container labels, and the quantity of materials kept near the booth.
|
Chemical inventory, safety data sheets, storage inspection checklists, waste-disposal records, and employee training records.
|
| Housekeeping and Maintenance |
Overspray, solvent residue, filter waste, and combustible deposits should be removed regularly. Cleaning methods should not create additional ignition or static hazards.
|
Examine booth surfaces, exhaust ducts, fan housings, filters, floors, ledges, and nearby areas. Confirm that maintenance intervals are defined and followed.
|
Cleaning schedules, maintenance logs, inspection checklists, and records of corrective actions.
|
| Worker Training and PPE |
Operators should be trained in booth operation, chemical hazards, emergency shutdown, fire response, spill response, housekeeping, and the correct use of personal protective equipment.
|
Confirm that workers understand ventilation checks, filter replacement restrictions, ignition-source controls, respirator requirements, and emergency procedures.
|
Training attendance records, written procedures, respirator-program documentation where applicable, and PPE assessments.
|
| Used-Equipment Verification |

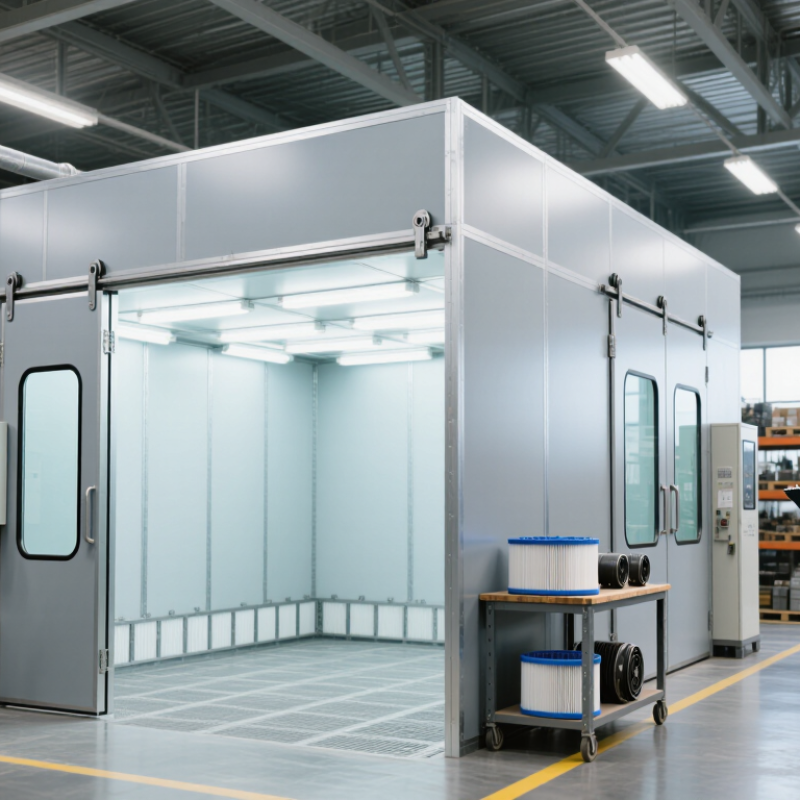

A used booth should be evaluated as a complete system rather than judged only by its age or appearance. Modifications, missing components, and undocumented repairs can affect compliance.
|
Hire qualified ventilation, electrical, fire-protection, and occupational-safety professionals to inspect the booth before payment or installation.
|
Independent pre-purchase inspection, equipment inventory, serial-free component list, test results, repair quotations, and installation plan.
|
| Installation Approval |
The final installation should be reviewed for zoning, building, fire, electrical, ventilation, and occupational-safety requirements. Approval depends on the jurisdiction and the specific process.
|
Confirm floor loading, clearances, exhaust termination, utilities, emergency access, separation from other operations, and permit requirements before installation begins.
|
Approved drawings, permits, commissioning records, final inspection reports, and written acceptance from the relevant authorities.
|
