China Top Automotive Paint Booth Manufacturers Guide

China Top Automotive Paint Booth Manufacturers Guide begins with one practical truth: a booth is more than a steel enclosure. It controls airflow, overspray, temperature, filtration, worker exposure, and finish consistency. Grand View Research estimates the global automotive paint booth market will expand steadily through 2030, while Fortune Business Insights reports different values and growth rates. The gap reflects changing market definitions, not necessarily poor research. The market is not perfectly measured.

“Airflow is the heart of booth performance,” says Michael McGowan, an industrial finishing consultant frequently cited in spray-finishing discussions. That simple observation deserves attention. A vehicle entering a downdraft booth should experience a clean, vertical air path, not turbulence around its mirrors and wheel arches. Filters should capture overspray without starving the exhaust system. Lighting should reveal orange peel before the customer does.

This guide examines leading Chinese manufacturers through measurable criteria. These include booth structure, fan efficiency, filtration design, heating systems, curing control, noise levels, installation support, and documented compliance practices. Reports from the International Energy Agency and the U.S. Environmental Protection Agency also underline the importance of energy use and volatile organic compound management in industrial finishing.

Price still matters. It should not lead every decision. A cheaper booth may bring higher filter replacement costs, uneven curing, or difficult maintenance. That is where buyers need experience, not polished brochures. Manufacturer claims require verification through factory visits, reference projects, airflow testing, and service records. Some details may remain uncertain. Honest comparison is better than perfect-sounding marketing.

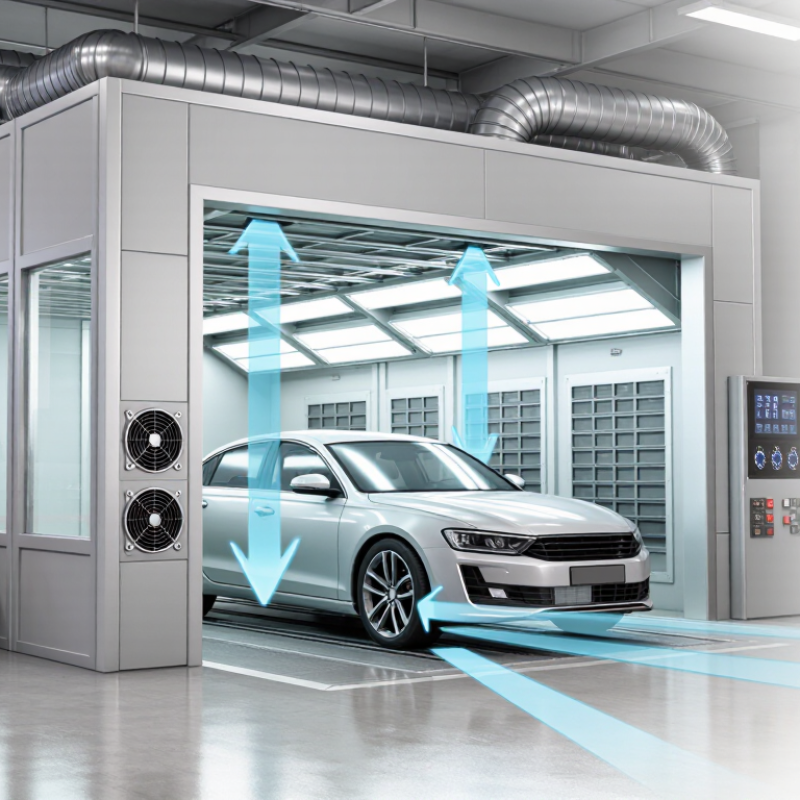

China Top Automotive Paint Booth Manufacturers Guide
Table of Contents [Hide]
1 Types of Automotive Paint Booths Made in China
2 Key Features of Leading Chinese Paint Booth Manufacturers
3 Manufacturing Standards and Quality Control Processes
4 How to Evaluate China’s Automotive Paint Booth Suppliers
5 Installation, Maintenance, and After-Sales Support Considerations

Types of Automotive Paint Booths Made in China

Types of Automotive Paint Booths Made in China

Chinese manufacturers produce several automotive paint booth types for body shops, industrial garages, and vehicle refinishing centers. Downdraft booths pull contaminated air through the floor, helping reduce dust near freshly coated panels. They usually provide the cleanest finish, but require a suitable pit or raised floor system. Crossdraft booths move air from front to rear. They cost less and install faster, although airflow may carry more particles across the vehicle.

Side-downdraft booths combine ceiling supply with filtered extraction along both walls. They offer balanced airflow without a deep floor pit. Semi-downdraft designs enter air through the ceiling front and exhaust it at the rear. This layout can fit smaller workshops. Prep stations are also common. They support sanding and masking before painting, but they are not a substitute for a fully enclosed spray booth.

Selection should follow actual workshop conditions. Check booth dimensions, fan capacity, filter access, lighting levels, noise, and maintenance space. A reliable supplier should provide airflow data, material specifications, test records, and clear installation drawings. Electrical components and ventilation systems must match applicable local safety requirements. In practice, a booth that looks impressive may perform poorly if filters clog quickly. I have also found that cheaper models can create unexpected cleaning costs. Airflow testing after installation is worth the extra effort, even when the equipment appears correctly assembled.

China Top Automotive Paint Booth Manufacturers Guide: Types of Automotive Paint Booths

The chart compares typical internal length ranges for major automotive paint booth types commonly manufactured in China. Crossdraft booths are widely used for general vehicle refinishing, downdraft booths provide more controlled overspray removal, side-draft booths offer a practical compromise between airflow performance and installation cost, and open-front booths are commonly selected for spot repair and component painting. Actual dimensions vary according to vehicle size, workshop layout, and local ventilation requirements.

Key Features of Leading Chinese Paint Booth Manufacturers

China Top Automotive Paint Booth Manufacturers Guide

Leading Chinese automotive paint booth manufacturers compete through measurable engineering, not attractive catalogs. Market research from Grand View Research identifies rising demand for energy-efficient automotive refinishing equipment through 2030. This pressure is visible in newer booths: variable-speed fans, LED lighting, insulated panels, and multi-stage filtration. A well-designed booth should maintain stable airflow across the vehicle, often near 0.3–0.5 m/s during spraying. Operators should also check pressure readings, filter-loading alarms, and emergency shutdown access.

Practical manufacturers provide more than a painted steel enclosure. They calculate booth dimensions around vehicle size, curing temperature, exhaust volume, and workshop layout. Reports from MarketsandMarkets connect industrial filtration growth with stricter environmental requirements and cleaner production expectations. That makes filter efficiency, VOC control, and documented airflow testing important selection points. Ask for factory acceptance records. Request electrical diagrams, airflow test results, and maintenance schedules.

Details reveal professionalism. Good suppliers label fan rotation, protect cable routes, and leave enough space for filter replacement. Small things matter. However, specifications can look stronger than real performance. On-site commissioning may expose uneven airflow, noisy motors, or excessive heat loss. Buyers should inspect a working installation, not only review photographs. Energy estimates also deserve skepticism; actual consumption depends on climate, operating hours, vehicle size, and curing habits. A reliable Chinese manufacturer explains these limits clearly and supports training, spare parts, and responsive after-sales service.

Manufacturing Standards and Quality Control Processes

China Top Automotive Paint Booth Manufacturers Guide

Manufacturing Standards and Quality Control Processes

Reliable automotive paint booth manufacturers in China usually build against documented quality systems, relevant national standards, and project-specific safety requirements. ISO 9001-based procedures can control purchasing, welding, assembly, and final inspection. However, a certificate alone proves little. Buyers should review inspection records, material certificates, and corrective-action reports.

A serious quality process begins with steel thickness, panel flatness, and weld consistency. Inspectors should check each frame for distortion before insulation panels are installed. Airflow testing is equally important. An anemometer can verify face velocity, while smoke testing reveals dead zones near corners and vehicle roofs. Filter frames must seal evenly. Small gaps matter.

Electrical components require suitable protection for the booth environment, with grounding and emergency shutoff functions tested before delivery. Lighting should provide uniform visibility without excessive heat. Factory acceptance tests should record airflow, pressure difference, noise, temperature, and curing performance. Photos and signed data improve traceability.

Some manufacturers still treat final cleaning as a cosmetic task. It is not. Dust left inside a duct can damage the first coating job. Experienced buyers should also inspect calibration dates and spare-filter availability. Production schedules may encourage shortcuts, and that risk deserves open discussion. A strong supplier welcomes independent inspection, although no process is flawless.

How to Evaluate China’s Automotive Paint Booth Suppliers

Evaluating China’s automotive paint booth suppliers requires more than comparing prices. The China Association of Automobile Manufacturers reported over 31 million vehicle sales in 2024. The International Energy Agency also reported more than 10 million electric car sales in China that year. This production scale increases demand for stable, repeatable refinishing equipment.

Ask for measured airflow, temperature uniformity, filtration efficiency, lighting levels, and energy consumption. Request recent factory test records, not only presentation images. Check whether the supplier can provide drawings, electrical diagrams, maintenance schedules, and spare-parts lists. Standards such as NFPA 33, ISO 9001, and ISO 14001 provide useful reference points, but certificates alone prove little. The European Commission’s Surface Treatment BREF identifies solvent emissions, dust, and energy use as important control areas.

A practical audit should inspect one operating booth. Watch the airflow gauges during spraying. Check the floor for overspray buildup and inspect filter replacement access. Ask for a curing test using your actual coating system. Record temperature differences at several positions. A polished demonstration can still hide weak after-sales support. I would also ask for customer references with similar booth dimensions. One weakness remains: supplier energy figures may use different testing conditions. Compare only like-for-like data, and require the assumptions in writing.

Installation, Maintenance, and After-Sales Support Considerations

China Top Automotive Paint Booth Manufacturers Guide: Installation, Maintenance, and After-Sales Support Considerations

A reliable paint booth begins with accurate site preparation. Check the floor level, ventilation route, power supply, lighting, and fire-safety requirements before delivery. Experienced installers should measure door clearance and airflow space, not simply follow a standard layout. During commissioning, technicians should test air velocity, pressure balance, temperature, and filter sealing. Record these results. They become useful service references later.

Maintenance must be practical and scheduled. Replace intake and exhaust filters when pressure readings rise, or when overspray becomes visible. Clean light covers weekly in busy workshops. Inspect fans, belts, electrical connections, seals, and grounding points every month. Small leaks can disturb the spray pattern and increase paint consumption. A rushed installation may appear successful, yet poor airflow often exposes the problem later. That deserves honest review.

Tips: Ask for a written installation checklist, commissioning report, spare-parts list, and response-time policy. Confirm whether remote troubleshooting and on-site service are available in your region. Keep filter models, maintenance dates, pressure readings, and repair photos in one log. Train operators to report unusual noise, vibration, odor, or uneven coating immediately. Do not wait for failure. Some suppliers provide attractive promises, but unclear service limits can create expensive delays. A dependable manufacturer should offer manuals, technician training, warranty terms, and realistic after-sales support.

China Top Automotive Paint Booth Manufacturers Guide - Installation, Maintenance, and After-Sales Support Considerations

Evaluation Dimension Typical Industry Data or Requirement Installation Consideration Maintenance Consideration Recommended Verification Point
Common Booth Types Downdraft, semi-downdraft, crossdraft, and side-draft configurations are commonly used for automotive refinishing. Select the airflow pattern according to vehicle size, finish quality, workshop layout, and available exhaust routing. Inspect airflow balance, pressure readings, filters, lights, doors, and seals on a scheduled basis. Request an airflow diagram, booth classification, and documented performance test method.
Typical Internal Size Passenger-vehicle booths commonly have an internal length of approximately 6–8 m, width of 3.5–4.5 m, and height of 2.6–3.2 m, depending on configuration. Allow clearance for doors, ramps, lighting, service access, exhaust ducts, and safe vehicle movement. Keep walls, grilles, floor pits, and access areas free from overspray and accumulated dust. Confirm usable internal dimensions rather than only the external panel dimensions.
Airflow Performance Many automotive spray booths are designed around approximately 0.3–0.5 m/s average air velocity, subject to local regulations and booth design. The building must provide suitable fresh-air intake, exhaust discharge, duct routing, and electrical capacity. Measure airflow and pressure regularly; replace blocked filters before fan load and finish quality are affected. Obtain factory test data showing airflow, pressure, fan capacity, and measurement conditions.
Heating and Curing Gas, diesel, electric, and heat-pump systems are available; curing temperatures are commonly set around 50–80°C according to coating-system requirements. Fuel systems require compliant combustion air, exhaust arrangements, safety controls, and local approval. Check burners, heat exchangers, temperature sensors, ducting, and safety interlocks at planned intervals. Verify temperature uniformity, warm-up time, energy consumption, and emergency shutdown performance.
Filtration System A typical system includes an intake filter stage and an exhaust or floor-filter stage; filter grades and media vary by design. Provide adequate filter access space and ensure filter frames are sealed to prevent bypass leakage. Inspect intake filters weekly in heavy-use facilities and replace them according to pressure drop and operating conditions. Ask for filter specifications, replacement part numbers, pressure-drop limits, and disposal guidance.
Electrical Requirements Industrial booths may use three-phase power, commonly 380–415 V at 50 Hz in many markets, while local voltage requirements differ. Confirm voltage, frequency, phase, total connected load, cable sizing, grounding, and hazardous-area requirements before production. Inspect terminals, control panels, motor protection, emergency stops, and grounding connections. Require an electrical schematic and a load list suitable for review by a local licensed electrician.
Lighting Automotive refinishing areas commonly target approximately 800–1,200 lux, with high color-rendering LED lighting preferred for paint inspection. Light fixtures should be sealed, evenly distributed, accessible for service, and suitable for the booth environment. Clean light panels regularly and replace damaged seals or flickering modules promptly. Confirm measured illuminance, color-rendering specification, fixture protection rating, and replacement availability.
Installation Timeline Factory production often requires several weeks; on-site assembly and commissioning commonly require several working days, depending on civil works and system complexity. Prepare the foundation, floor, power, exhaust route, ventilation openings, lifting equipment, and delivery access in advance. Record commissioning settings, baseline airflow, temperature data, and control parameters for future comparison. Include a written schedule covering manufacturing, shipping, installation, testing, training, and handover.
Safety and Compliance Essential features generally include emergency stops, interlocks, adequate ventilation, fire protection provisions, compliant electrical equipment, and safe exhaust discharge. Local building, fire, environmental, electrical, and occupational-safety rules take precedence over generic product specifications. Test alarms, interlocks, emergency stops, fire equipment, and ventilation operation according to the site safety plan. Request conformity documents and have the design reviewed by qualified local safety professionals before operation.
Routine Maintenance Daily cleaning, weekly visual checks, monthly functional inspections, and periodic professional servicing are common maintenance practices. Ensure maintenance access to fans, motors, burners, filters, control cabinets, lamps, and exhaust components. Maintain a log for filter changes, airflow readings, lamp replacement, lubrication, faults, and safety tests. Check whether the supplier provides preventive-maintenance schedules and service checklists in English.
Spare Parts Availability Common replacement items include filters, belts, bearings, lamps, sensors, switches, fan motors, burner components, and control relays. Use standardized, locally serviceable components where possible to reduce downtime and import dependency. Keep critical consumables and recommended emergency spares in stock based on operating hours. Obtain a spare-parts list with item codes, specifications, prices, lead times, and interchangeability information.
Training and Documentation A complete handover normally includes an operating manual, maintenance instructions, electrical drawings, parts list, and safety procedures. Train operators on startup, shutdown, airflow checks, filter replacement, emergency procedures, and coating compatibility. Update maintenance records whenever settings, components, or operating procedures change. Make training and delivery of English-language documentation part of the acceptance criteria.
Warranty Coverage Commercial equipment warranties commonly cover manufacturing defects for a defined period, often subject to exclusions for consumables, misuse, and improper installation. Clarify whether installation, commissioning, travel, labor, freight, and replacement components are included. Follow the documented maintenance schedule to avoid warranty disputes related to neglect or unauthorized modification. Review warranty duration, exclusions, claim procedure, response time, and the governing contract terms.
After-Sales Response Effective support typically includes remote troubleshooting, spare-parts coordination, technical documentation, and optional on-site service. Confirm communication channels, working hours, language capability, escalation contacts, and time-zone coverage. Use fault codes, photographs, airflow readings, and maintenance logs to accelerate diagnosis. Set measurable response and resolution targets in the purchase agreement or service-level document.
Total Cost of Ownership The purchase price is only one cost element; energy, filters, labor, coatings, inspections, repairs, and downtime also affect operating cost. Compare fan power, heating efficiency, filter consumption, installation work, and required building modifications. Track energy use, filter life, repair frequency, and booth utilization to identify operating-cost trends. Evaluate suppliers using a multi-year cost model rather than equipment price alone.
Note: Figures shown are typical planning ranges for automotive refinishing facilities. Final requirements must be confirmed against the selected booth design, coating system, local building and environmental regulations, electrical standards, and site-specific risk assessment.
